How to Use XLOOKUP in Excel: Syntax and Best Practices

Deploying XLOOKUP in spreadsheets represents a significant shift in data management efficiency for spreadsheet operators. Unlike legacy functions that require rigid column indexing and sorted data, the XLOOKUP function provides a flexible, bidirectional search mechanism that reduces formula breakage when structural changes occur in source datasets. By decoupling the lookup array from the return array, users gain the ability to perform precise data retrieval across disparate sheets and workbooks without the overhead of complex index match combinations.

XLOOKUP Syntax and Architecture

The XLOOKUP function follows a specific signature: =XLOOKUP(lookup_value, lookup_array, return_array, [if_not_found], [match_mode], [search_mode]). The first three arguments are mandatory, while the remaining three provide granular control over error handling and search behavior. This structure eliminates the need for the column index number required by VLOOKUP, which often causes errors when users insert or delete columns in a source table.

When you use xlookup in excel, the function scans the lookup_array for the lookup_value and returns the corresponding value from the return_array. Because these arrays are independent, they do not need to be adjacent. This architectural improvement allows for cleaner data models, especially when you need to remove duplicates in excel before performing a lookup to ensure that your search returns a unique, accurate result rather than the first match found in a cluttered dataset.

The optional arguments provide significant utility. The [if_not_found] argument allows you to return a custom string or zero instead of the standard #N/A error. The [match_mode] argument enables exact matches, wildcards, or approximate matches (next smaller or larger item). Finally, [search_mode] allows you to search from first-to-last or last-to-first, which is useful for identifying the most recent entry in a time-series log.

Implementing XLOOKUP Across Sheets

Linking XLOOKUP formulas across two sheets is a standard requirement for maintaining clean data separation. To reference data on a different sheet, you simply include the sheet name followed by an exclamation point in your array references. For example, if your master data resides on a sheet named 'Inventory', your formula would reference 'Inventory!A:A' for the lookup array and 'Inventory!B:B' for the return array.

When you use xlookup between two sheets, ensure that your workbook is saved in a format that supports dynamic array functions (XLSX or XLSM). If you are working with large datasets, consider the performance impact of cross-sheet references. While XLOOKUP is efficient, excessive cross-workbook references can slow down calculation times, similar to how why is chatgpt so slow often relates to high latency in data processing tasks.

To use xlookup between two excel files, you must keep both files open during the initial formula creation. Excel will automatically generate the full file path in the formula string. Once established, the formula will function even if the source file is closed, provided the file path remains unchanged. This is the preferred method for linking summary reports to raw data exports.

Handling Multiple Criteria

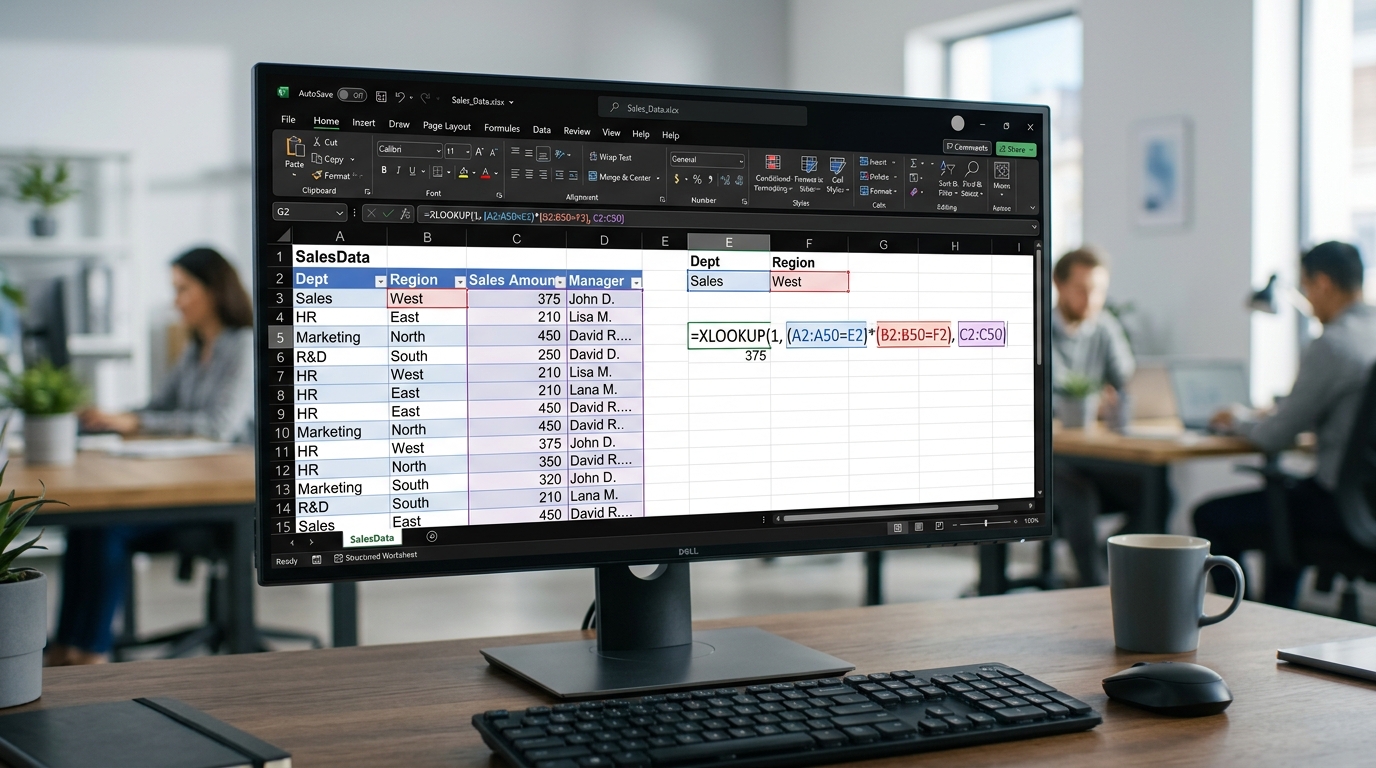

A common limitation of legacy lookup functions is the inability to filter by more than one condition. To use xlookup with multiple criteria, you must use boolean logic within the lookup_array argument. By concatenating your criteria with the ampersand operator, you can force the function to evaluate a unique combination of values.

=XLOOKUP(1, (Criteria1_Range=Value1)*(Criteria2_Range=Value2), Return_Range)

In this syntax, the multiplication of the two logical arrays creates a temporary array of ones and zeros. The XLOOKUP function then searches for the number 1, which represents the row where both conditions are true. This approach is significantly more readable than nested IF statements or complex array formulas and is the standard practice for multi-dimensional data retrieval.

When you use xlookup for multiple criteria, ensure that the ranges are of equal size. If the ranges differ, the formula will return a #VALUE! error. This method is highly effective for reconciling financial records where you need to match both a transaction date and an ID to return a specific amount.

Advanced Troubleshooting and Pitfalls

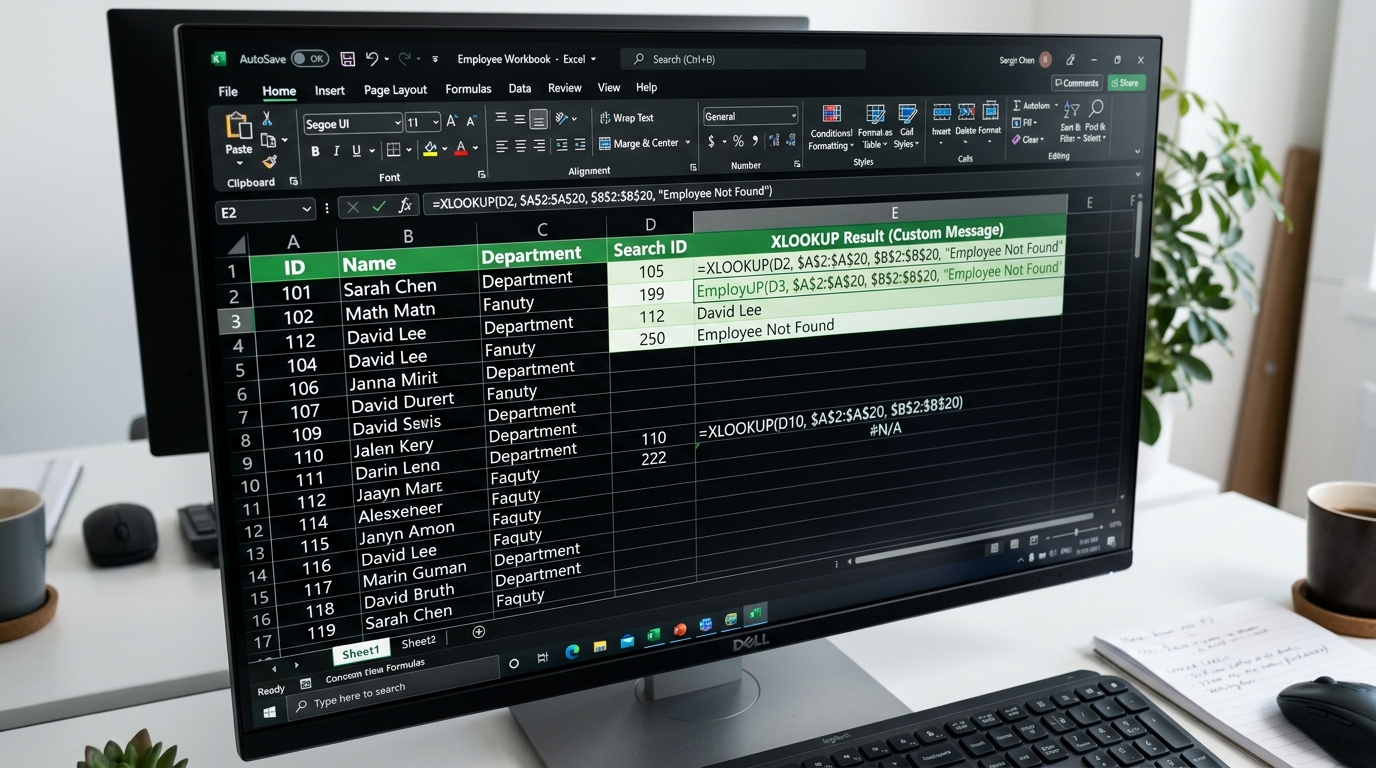

The most frequent error encountered when configuring XLOOKUP formulas is the #N/A error. This occurs when the lookup_value does not exist in the lookup_array. While this is often expected, it can be mitigated by utilizing the fourth argument of the function to return a blank string or a custom message. Always verify that your data types match, as a number stored as text will not match a numeric value.

Another common issue involves hidden characters or trailing spaces. If your lookup value appears correct but the formula fails, use the TRIM function on your source data to remove invisible whitespace. Additionally, if you are attempting to use xlookup to return multiple values, remember that XLOOKUP will only return the first match unless you wrap it in a FILTER function. Using xlookup and filter together allows you to return an array of results that spill into adjacent cells.

Finally, be cautious when using xlookup across multiple workbooks. If the source workbook is moved or renamed, the link will break. Always maintain a consistent directory structure for your data files. If your formulas become sluggish, check for circular references or excessive volatile functions in your workbook, as these can degrade performance regardless of the lookup method chosen.

Optimizing Data Retrieval Workflows

To maximize the utility of your spreadsheets, integrate XLOOKUP with other functions. For instance, using xlookup and if function together allows for conditional logic based on the result of the lookup. You can check if a value exists and then perform a calculation, such as multiplying a price by a quantity, only if the item is found in your inventory list.

When you need to perform calculations on the results, you can use xlookup and sumif together to aggregate data based on a lookup key. This is particularly useful for generating monthly reports from raw transaction logs. By combining these functions, you create a dynamic dashboard that updates automatically as new data is added to your source sheets.

Always prioritize the use of named ranges when working with large datasets. Named ranges make your formulas easier to read and maintain. Instead of referencing 'Sheet1!$A$2:$A$5000', you can reference 'ProductIDs'. This practice reduces the likelihood of errors when you update your data ranges or move your tables to different locations within the workbook.
